World-Class Quality Compatible Fisher Connectors
with Push-Pull Fast Self - Locking System
Supplier of Top-Quality Fisher Connectors
Find your required connectors among our powerful Core and F Series. We have a complete range of compatible Fisher Connectors with very high quality.
These elegant precision connectors are made with a brass outer shell finished with pearl or black chrome. They provide quick and powerful connectivity made secure by the push-pull self-latching mechanism.
Each plug and receptacle is integrated with highly customizable features such as pin count, keying system, size, angle, voltage, and accessories.
Just send us the Fischer part number, INTE-AUTO team will offer a replacement solution to you.
Right Angle Fisher WSO Connector
The 90° elbow Fisher WSO102 103 104 105 connectors is equipped with the push pull latching system that’s very easy to mate and use. This versatile product can be used for different cable orientations, and it can come in either IP50 or IP68 ratings.
Straight Fisher Plug
INTE-AUTO’s rugged Fisher plugs are well-suited for abusive or corrosive environments. They have 360° shielding against electromagnetic interference and dust-proof technology. One of your options is to avail of these protective sleeves for better protecting the cable.
Panel Mount Female Fisher Connector
Panel-mounted receptacles can have straight or elbow multipole contacts. You can either go for front or rear-mounted configurations with your choice of crimp, solder, or PCB contacts. These DBPC102 103 1031 104 105 receptacles can be ordered separately from the plugs.
Waterproof Overmolded Fisher Connector
Fisher male connectors are designed with a short shell for overmolding. We customize the plug to fit the female contacts, and the socket fits the male contacts. They can reach IP68 for outdoor applications. Ask us about our overmolding cabling services that will eliminate hassles and shorten your lead times.
OverMolded Fisher Connectors for Military
There are many military applications for our connectors because modern equipment demands lighter but more powerful technology. Thus, connectors are often worn around the person or carried. We produce lightweight and compact military Fisher connectors that are ready to face the harshest of environments.
Pearl Chrome Fisher Overmolded Connector
We have overmolded, short-type Fisher connectors that feature the half-shell plug configuration. The INT13-T3 model is a reputable design adopted in the automotive and medical industries for its unparalleled signal integrity and compactness. You can get them in either pearl chrome or black chrome finish to complement your equipment.
IP50 Black Chrome Fisher Connector
Our male and female Fisher connectors provide high performance even in rough, moving, and moist environments. They withstand below freezing and high temperatures without affecting reliability. We guarantee secure and faultless connections through their gold-plated nickel contacts.
IP50 Push Pull Fisher S D Connector
This black self-locking S102 103 1031 104 105 plug and D102 103 1031 104 105 receptacle is a pair of highly configurable push pull Fisher connectors. They can have cable or panel-mounted shell designs as well as your choice of pearl or black-chrome finish. They are tamperproof to protect against mismating and accidental disengaging.
Fisher Connector with Bend Relief
This Fisher connector is typically used for testing & military devices. The multi-core connectors have low-voltage inserts and a PPS insulator. Plugs can have a nut to fit a bend relief and sockets can be assembled through solder or PCB contacts. The IP rating is 50, and it is compatible with the Fischer 102 103 104 105 series connector.
IP50 Pearl Chrome Fisher Connector
Strong and stylish, our Fisher connectors come in different sizes that can accommodate a wide range of cable diameters starting from 3.0mm to 12mm. They can also have up to 55 contacts, your preferred keying configurations (G, A, or others), and low or high-voltage options.
IP68 Pear Chrome Fisher Connectors
Watertight IP68 connectors are highly needed for wet or submerged applications, or for areas where there is a high particulate count. Our IP68 Fisher connectors like these INT-S and INT-DBP models give you high-sealing performance and chemical resistance. That’s why they are preferred by the military and marine industries.
IP68 Fisher Plug and Receptacle
If you need excellent connectivity in a tight space, our Fisher S-type plug and DEE type socket does the job perfectly. They are space-saving and easy to assemble on your own. They are widely adopted by many industries for their top-notch design and high mating cycles (>5000).
Inversion Contacts Fisher Military Connector
Experience advanced technology with military-grade connectors that save weight and provide powerful signal strength. Our Fisher connectors have robust keying for lightning-quick response and data speed. They are 100% tested against corrosion, vibration, and shock.
Fisher S and DEE-type Connectors
The INT-S and INT-DEE are male and female connectors compatible with the Fischer 102 103 1031 104 105 lines of products. This straight plug and fixed receptacle from the F Series include a cable collet and can be ordered with a nut for fitting a bend relief. Other versions of this product may be configured with a non-locking or an emergency quick release system.
Inline Cable Male & Female Fisher Connectors
The INT-S and INT-K are cable mount connectors, they can be used for so many applications including medical, avionics, automotive, and military uses. These circular fisher connectors have an IP50 and IP68 rating indicating excellent performance in harsh environments. These models is available in 2 to 37 pins.
Get Your Fisher Connectors Now
Complete Line of Prime Connectors from the Core Series by Leading China Manufacturer - INTE-AUTO
INTE-AUTO gives you the latest most widely used connection designs in the market today with our line of Fisher connectors.
You will be impressed by the quality and style of these brass connectors. They perform at the highest levels, making them perfect devices in the crucial military, avionics, automotive, medical, and industrial devices or equipment.
We employ a dedicated team of skilled engineers to help you find the perfect connector solution for your needs. And we also have detail-oriented manufacturing technicians who understand your requirements.
But most of all, you will love how durable and affordable these Fisher connectors are. What once was only used for the most advanced military programs are now accessible to you.
Send us an RFQ, we will show you the many designs we have, meanwhile INTE-AUTO connectors can help you to save the cost and give perfect substitution connectors for your current device.
Related Products - Dust Cap
Fisher Socket with Dust Cover
One of the best accessories for an unmated Fisher connector is the dust cap. Dust covers for the Fisher Series connectors are made of metal or stainless steel. They protect the plug or receptacle’s contacts against dust and liquid splash.
Fisher Socket with Dust Cap
Our Fisher plugs and sockets can be ordered with a plastic or metal dust cap. All covers have a brass steel or plastic lanyard release material. Be sure to indicate in your order that you prefer your Fisher plug or socket with these protective caps.
Fisher Plug with Cap
The lanyard of the dust caps also helps with the handling of the Fisher connectors. Capsizes vary depending on the size of the part, the circular metal dust cover can reach at IP68 rating.
Fisher Plug with Dust Cap
Dust cover materials can either be chrome-finished brass or copper. It can also come in soft plastic depending on your preference. Caps can achieve different protection indexes from IP50 to IP68.
Fisher DEE Socket with Cap
The dust cover for the DEE hermetic socket provides an IP68 protection rating for the exposed unmated contacts. Using the cap ensures that liquids or particulates won’t damage the product even when not in use.
Dust Cap for Fisher Connector
Dust caps are lids that protect connector contacts from any damaging or corrosive contaminants such as dust, water, or even moisture in the air. Find the best-priced dust caps for any connector size only here at INTE-AUTO.
Manufacturing and Technical Details
| Part Section Showing Internal Components | |
| ① Latch sleeve | ❶ Outer shell |
| ② Male contact | ❷ Hexagonal nut |
| ③ Insulator | ❸ Outer o-ring |
| ④ Fixed spacer | ❹ Inside O-ring |
| ⑤ Inner shell | ❺ Retaining ring |
| ⑥ Outer shell | ❻ Insulator |
| ⑦ Gasket | ❼ Female contact |
| ⑧ Retaining ring | |
| ⑨ Collet | |
| ⑩ Collet nut | |
Fisher Connectors - The Ultimate FAQ Guide
As technology continues to grow, you may find yourself needing to transfer data, signals, or power more accurately and reliably than ever before.
Whether working on complex projects, you need data or power transferring methods that are both effective, budget-friendly, and easy to use.
With the F Series Fisher Connectors, you get solutions designed to meet your specific needs, whether you are dealing with simple applications or challenging military projects.
In this FAQ guide, you will find everything you need to know about INTE-AUTO F Series Connectors.
You’ll learn about their features, benefits, and how they can help you achieve the best results in your work.
The key features of INTE-AUTO F Series Connectors include:
- Robust Construction: These connectors are made from strong brass shells with a pearl or black chrome finish for durability and a nice look.
- Reliable Connections: Connect these connectors using the push-pull self-latching mechanism for quick and secure connections.
- User-Friendly Disconnection: Disconnect the plug and socket simply by pulling back the outer shell.
- Tailored Customization Options: INTE-AUTO supplies and customizes these connectors to fit your needs, such as pin count, keying system, size, angle, voltage, and accessories.
- Enhanced Environmental Protection: INTE-AUTO connectors have IP ratings, like IP50 and IP68, to protect against dust and water.
- Broad Temperature Range: From – 50°C to + 250°C.
- Excellent Electromagnetic Shielding: 360° shielding against electromagnetic interference for a strong signal.
- Exceptional Corrosion Resistance: Withstand over 96 hours of salt spray testing.
- Extended Mating Cycles: Reliable performance with over 5000 mating cycles for long-lasting use.
- High Shock Resistance: These connectors withstand shocks up to 100g or 6ms for reliability in active environments.
- Secure Half Shell Keying: They are designed for secure locking and blind mating, preventing misalignment and ensuring a correct fit.
INTE-AUTO F Series Connectors are tested for durability in several ways to make sure they meet high standards. Here’s how you can expect them to be tested:
- 96 Hours Salt Spray Test: These connectors undergo a salt spray test to see how well they resist corrosion, rust, and wear so you can trust their durability and reliability.
- 5000 Mating Cycle Test: These connectors undergo mating cycle tests to check their maximum mating capability by connecting and disconnecting them many times.
- Shock and Vibration Tests: These connectors are tested for shock and vibration to ensure they can handle tough and moving environments.
- -50 degrees to 250 degrees Temperature Tests: They are tested in extreme temperatures to ensure they work well in different conditions so that they perform properly anywhere.
- Environmental Testing: They are tested for different environmental conditions to ensure they handle humidity and other challenges, making them reliable in tough environments.

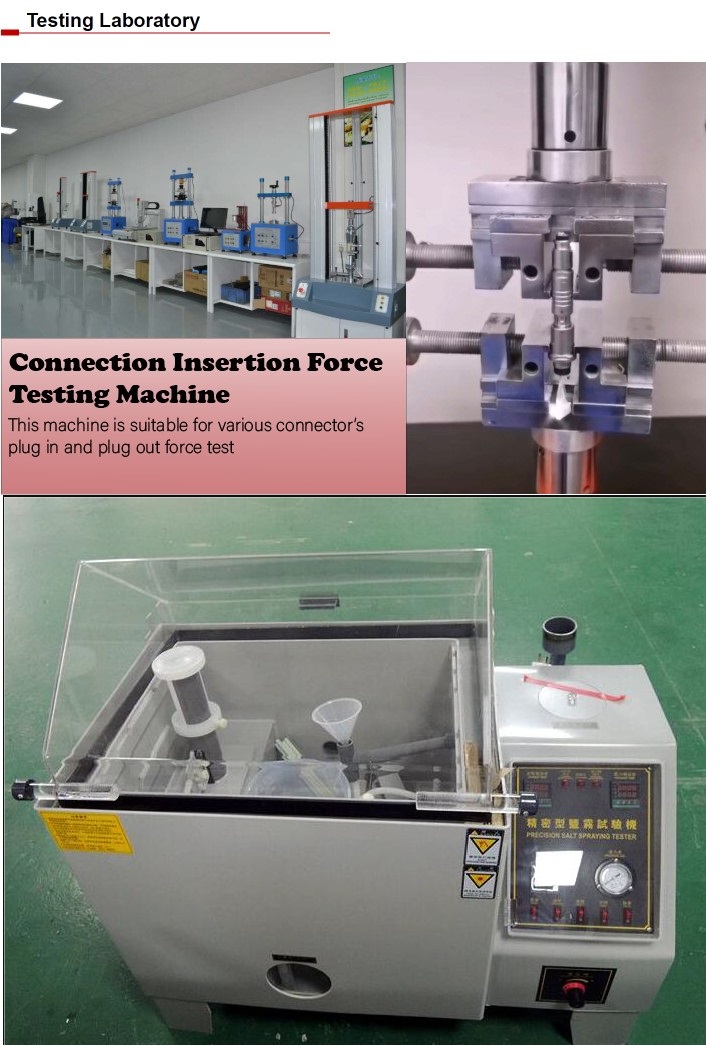

Figure 1 INTE-AUTO F Series Connectors Testing
Yes, INTE-AUTO F Series Connectors are expertly designed to withstand extreme temperatures with ease.
You can trust these connectors to perform exceptionally well in a wide range of temperatures, from – 50°C to + 250°C.
This means you can trust them to work reliably in both very cold and very hot conditions.
No matter where you use these connectors, you will have peace of mind knowing they can handle the heat or the cold without any issues.
Whether you’re working in harsh environments or challenging projects, these connectors will deliver the performance you need.
With INTE-AUTO F Series connectors, you can easily find the right size and pin connection to fit your needs. Here’s what you can choose from:
- 102 Series: Choose from 2, 3, 4, 5, 7, or 9 pin connections.
- 103 Series: Offers 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, or 16 pin connections.
- 1031 Series: Available with 10, 12, or 19 pin connections.
- 104 Series: Provides options ranging from 2 to 19 pin connections.
- 105 Series: Available with 2 to 40 pins connections.
You can rely on INTE-AUTO F Series Connectors for critical medical applications due to their reliability, durability, and precision.
Here’s how these connectors are typically used in the medical field:
- Medical Imaging Equipment: MRI, CT, and ultrasound machines to ensure secure, stable connections for accurate diagnostics.
- Patient Monitoring Devices: ECG, blood pressure monitors, and other patient monitoring systems to maintain continuous, reliable signal transmission for accurate patient monitoring.
- Surgical Instruments: Surgical tools and robotic systems provide the precision and dependability needed in complex procedures.
- Diagnostic Equipment: Various diagnostic devices to enable quick and secure connections. Thus improving the efficiency and accuracy of medical testing.
- Portable Medical Devices: Portable devices like ventilators and infusion pumps, where compact and reliable connections are essential for mobile healthcare.
- Laboratory Equipment: You can depend on these connectors in laboratory instruments to ensure accurate data and signal transfer, which is crucial for reliable test results.
Yes, INTE-AUTO F Series Connectors are designed with reliable data transmission capabilities, which enhance overall aircraft performance and safety.
In avionics, you need connectors that can withstand harsh conditions, and these connectors offer that with their durable construction and strong materials.
The secure push-pull self-latching mechanism allows connecting and disconnecting devices quickly and easily, which is important in avionics where time and safety matter.
INTE-AUTO connector’s durability is proven by their ability to withstand extreme temperatures, shocks, and vibrations, conditions you commonly encounter in aviation.
High ingress protection ratings provide resistance to dust, moisture, and other environmental factors, ensuring reliable performance.
INTE-AUTO connectors could handle the high-stress conditions of avionics systems, including aircraft control and communication systems.
Their robust design ensures stable and secure connections, even in the challenging and dynamic conditions of flight.
So, if you are looking for reliable connectors for avionics, INTE-AUTO F Series Connectors are an excellent choice!
Here are the advantages of using INTE-AUTO F Series Connectors to complete the transmission process:
- High-Quality Materials: made with brass.
- Secure Connections: push-pull self-latching mechanism.
- Versatile Compatibility: These connectors are compatible with famous brands.
- Wide Temperature Range: Across a broad temperature range from – 50°C to + 250°C.
- Customizable Options: Supply customized connectors to meet your needs with options like pin count, keying system, size, angle, and voltage, ensuring a perfect fit for your projects.
- High Ingress Protection Ratings: Rated from IP50 to IP68, ensuring resistance to dust, moisture, and contaminants.
- Lightweight and Compact Design: Making them easy to install and integrate into systems.
- Enhanced Signal Integrity: Reliable for accurately transmitting data, power, and signals.
- Easy Installation: User-friendly design allows for straightforward installation and removal.
- Cost-Effective Solutions: By choosing INTE-AUTO F Series Connectors at an affordable price.
Figure 2 INTE-AUTO F Series Connectors Advantages
In conclusion, you can trust INTE-AUTO F Series Connectors to meet all your connection needs with confidence.
Their exceptional durability, reliability, and versatility make them the perfect choice for a wide range of applications.
INTE-AUTO connectors are designed with high-quality construction, which ensures long-lasting performance even in tough environments.
These connectors deliver outstanding value and performance with features like secure connections, environmental protection, and customization options.
So whether you’re working in industrial, medical, or military applications, you can count on INTE-AUTO F Series Connectors to provide the reliable transmission you need.
Choose these connectors today and experience the difference in quality and performance!
